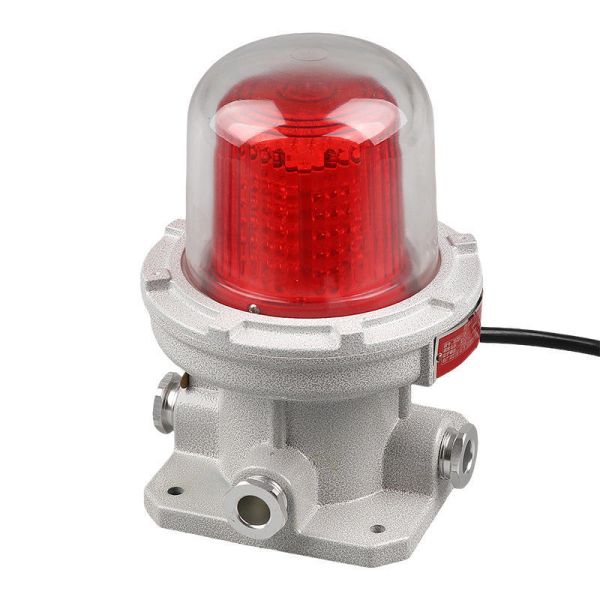

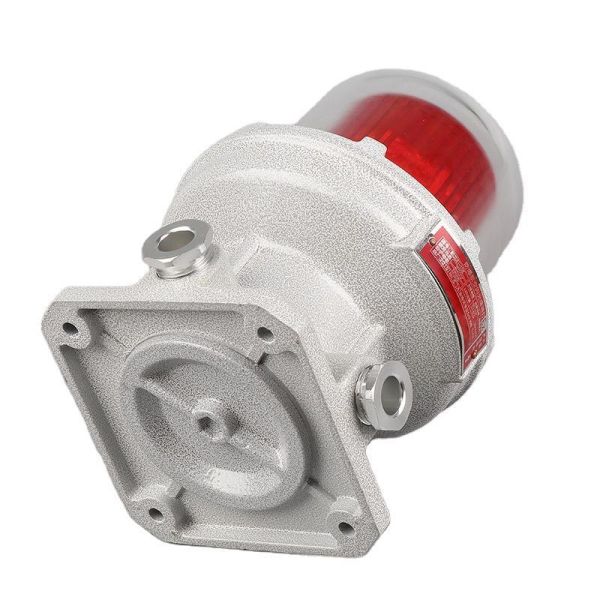

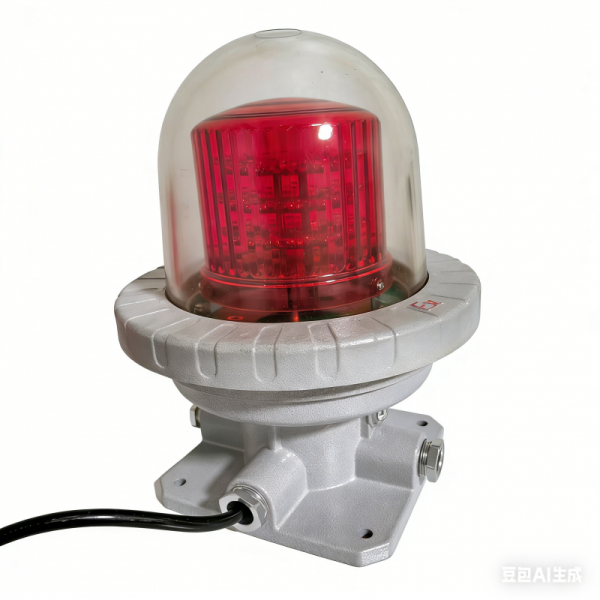

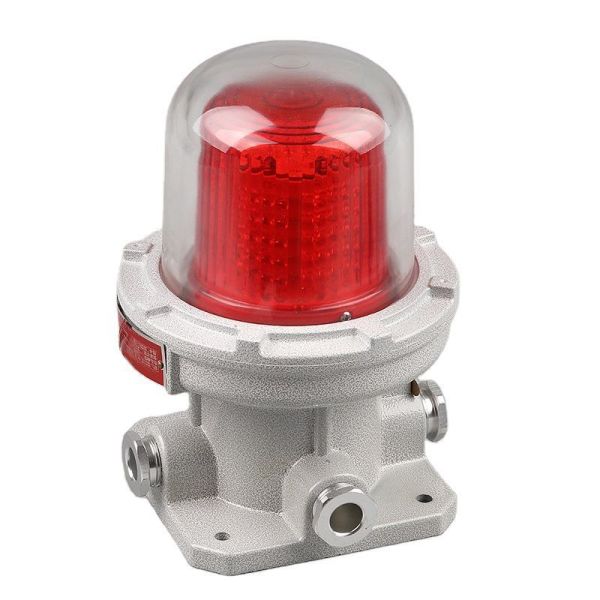

Explosion-proof aviation obstacle light
Multiple models available · Support non-standard customization
Product Parameters
| ITEM |
PRODUCT NAME |
| CLZD81 |
Explosion-Proof Medium-Intensity Aviation Obstruction Lights |
| OTHERS |
Vertical stand optional (1 meter high).Lamp housing color, light color, style, and voltage are all customizable. Please contact us. |
| COMMON |
RATED POWER: |
5~10W; 20W; 40W |
INPUT VOLTAGE: |
AC110~275V |
IMPLEMENTATION
STANDARDS: |
GB/T 3638.1-2021;
GB/T 3836.2-2021;
GB/T 3836.31-2021 |
EXPLOSION-PROOF
MARKING: |
Ex db IIC T6Gb;
Ex tb IIIC T80ºC Db |
| LIGHT SOURCE: |
LED |
LIGHTING FREQUENCY: |
20~60/min |
PEAK LIGHT
INTENSITY: |
Medium ≥ 2000cd;
High ≥ 20,000cdB |
SYNCHRONIZATION
METHOD: |
Beidou Satellite GPS
Synchronization (Optional) |
| CONTROL METHOD: |
Cable Control;
Light Control (Optional) |
LIGHTING COLOR: |
Red; Yellow Blue,White(Optional) |
INLET THREAD
SPECIFICATIONS: |
G3/4 |
APPLICABLE
CABLE OD: |
Φ9~14mm |
OPERATING
TEMPERATURE: |
-25°C~+45°C |
LIGHTING ANGLE: |
360° |
| IP RATING: |
IP66 |
CORROSION
RESISTANCE RATING: |
WF1 * WF2 |
LAMP DIMENSIONS
(mm): |
Length 168 × Width 168
× Height 245 |
PRODUCT WEIGHT: |
3.3 KG |
| FEATURES |
· The explosion-proof design features a flameproof structure and can be used in environments with gases and dust of the corresponding explosion-proof grade.
· The aluminum alloy die-cast housing features an electrostatically sprayed surface for an attractive appearance.
· It utilizes a high-brightness LED light source, offering low power consumption, a long service life, and is maintenance-free.
· The explosion-proof aviation obstruction light is available in low, medium, and high intensity options.
· The highly protective, sealed structure, equipped with an aging-resistant silicone rubber sealing gasket, provides excellent protection.
· It features an integrated chip with multiple protection circuits and can be equipped with a GPS and Beidou satellite chip to synchronize multiple lights.
· It uses an automatic light-operated switch for high reliability, automatically turning on at night and in foggy conditions, and off during the day.
· Wireless synchronization is available upon request for ease of use and installation; please specify when ordering.
· It is suitable for both steel pipe and cable wiring. |
|
|
|
|
| APPL |
· Oil & Gas Platforms
· Chemical Processing Plants
· Grain Silos & Flour Mills
· Offshore Drilling Rigs
· LNG Stations
· Coal Mines & Tunnel Infrastructure
· Hazardous Storage Warehouses
· Zone 1 and Zone 2
· For temperature groups T1~T6
· For IIA, IIB, IIC explosive gas environments |
Product Description
|
|
Aluminum die-cast, thickenedlamp body
Made of thickened aluminum lamp body, high hardness,
strong impact resistance, fireproof and flame-retardant, more stable and durable |
High-brightness LED lamp beads
Brighter light source
LED filament brighter light color more pure color rendering high
Light decay low energy-saving filament good heatdissipation longer service life |
|
Product Applications:
· Warehouse
· Manufactory
· Oil Refining
· Industry
· Offshore Oil Platforms
· Zone 1 and Zone 2
· As signs or signal alarms around the top of buildings
· Places with high protection requirements and humidity
· For IIA, IIB, IIC explosive gas environments
· For temperature groups T1~T6
· For other dangerous environment for general lighting and operational lighting
· For energy saving renovation projects and maintenance & replacement for difficult places |
Product Details:
Transparent Cover
Polycarbonate Transparent Cover
Environments Can operate normally in various harsh
Multi-layer Lamp Beads Multiple layers stacked to form a luminous body
Lifespan exceeds 100,000 hours
Easy installation
Wide range ofapplications
Simple installation,easy to use
All-aluminumheat dissipation
Multiple cooling with largeheat dissipation area,protective lamp source, highquality,energy-saving
|
FAQ:
1. How do I choose between Low, Medium, and High Intensity lights?
Low Intensity: Suitable for buildings, storage tanks, or small chimneys under 45 meters in height; typically uses a constant red light.
Medium Intensity: Suitable for facilities between 45 and 150 meters in height; often uses red or white flashing lights.
High Intensity: Suitable for towers or extremely tall structures exceeding 150 meters in height; typically used for high-visibility warnings during the day and night.
2.How does the light achieve automatic control and multi-light synchronized flashing?
We can provide customized GPS wireless synchronized flashing: For tall buildings or large platforms, a GPS wireless synchronization module can be selected to achieve millisecond-level synchronized flashing of multiple warning lights without the need for additional complex signal cables.
3. Can you accept put my logo on light product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
4.Where are explosion-proof aviation obstruction lights typically used?
Explosion-proof aviation warning lights are designed for hazardous areas where flammable and explosive gases or dust may be present, and are used to warn passing aircraft to prevent collisions.
5.Warranty
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly,
during the guarantee period, we will send new lights with new order for small quantity. All products have been tested before the shipment and it was packaged in good condition.For defective batch products,
Please tested the products at first before you assemble it, if any problem here, please inform us within 3 days of receipt. We can arrange the replacement for you if the situation is confirmed.
