ATEX Aluminum 16-Inch Explosion Proof Oscillating Fan Ventilator Wall Mounted
Hardcore safety protection: Full explosion-proof architecture and multiple compliance certifications: Fully enclosed explosion-proof design: The product adopts an explosion-proof structure in accordance with national standards GB 3836.1 and GB 3836.2. The joint surface length of the base and the end cover is ≥ 12.5mm, and the gap is < 0.2mm.

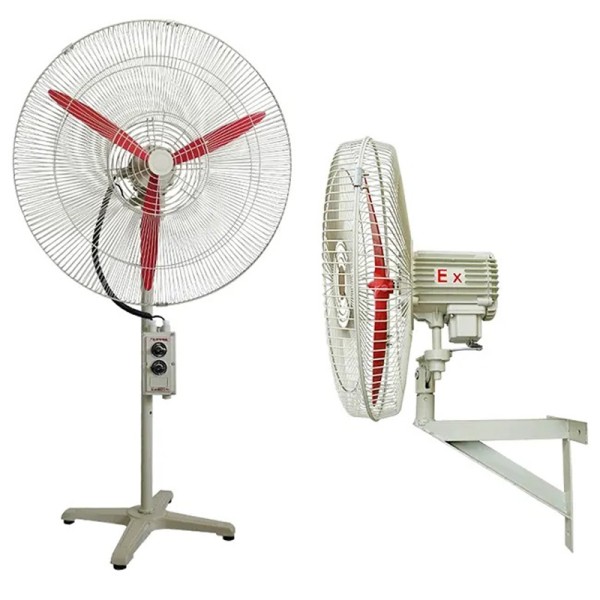

Multi-voltage operation and flexible installation: Balancing global multiple channels and diverse installations: Wall-mounted (FB-500) and floor-standing (FB-750) models are supplied in the same series: The wall-mounted model is equipped with a specially designed triangular installation frame, which can utilize the height of the wall (wall fan) to release the ground working space, suitable for warehouses and corridors.
Long service life and low maintenance: Independent swivel mechanism and enhanced cooling system: Original forced air cooling technology: A dedicated cooling fan is specially added at the rear end of the main motor for strong heat dissipation, and heat dissipation ribs are added to the motor housing.
Universal application to multiple high-risk industries: Extensive coverage from petrochemicals to metallurgy: Cross-industry multi-dimensional matching: In addition to heavy industry scenarios, it is also widely applied to anti-corrosion ventilation in chemical plants, organic solvent volatilization environments in pharmaceutical factories, and high-temperature heat wave replacement in metallurgical workshops.
Overall cost advantage and procurement efficiency: No need for purchase, no need for cables, no need for spare parts: Modular spare parts, no need for return to factory for shipment: Universal for upright and wall-mounted accessories, core components such as explosion-proof motors, covers, and fan blades can be quickly disassembled and replaced manually without having to transport the bulky large fans back to the original factory.
| MODEL |
Blade diameter(mm) |
Power(kw) |
Speed(r/min) |
Air volume(m/h) |
| FB-500(L) |
500 |
0.37 |
1450 |
6600 |
| FB-600(L) |
600 |
0.55 |
1450 |
9600 |
| FB-750(L) |
750 |
0.75 |
1450 |
18000 |
| COMMON |
WIND LEAF MATERIAL: |
ALUMINUM ALLOY |
NOISE: |
50-60dB |
| BEARING TYPE: |
BALL |
VOLTAGE: |
220/380V/110V |
| TYPE: |
AC FLOOR SHAKING FAN |
ENERGY EFFICIENCY LEVEL: |
LEVEL 3 |
| MOTOR: |
COPPER MOTOR |
AIR OUTLET DIRECTION: |
NORMAL WIND |
| EX MARK: |
EX D IIC T4 GB |
FAN STYLE: |
COLUMN TYPE |
| BLADE ANGLE: |
30° |
NUM OF BLADES: |
3 |
Product Features

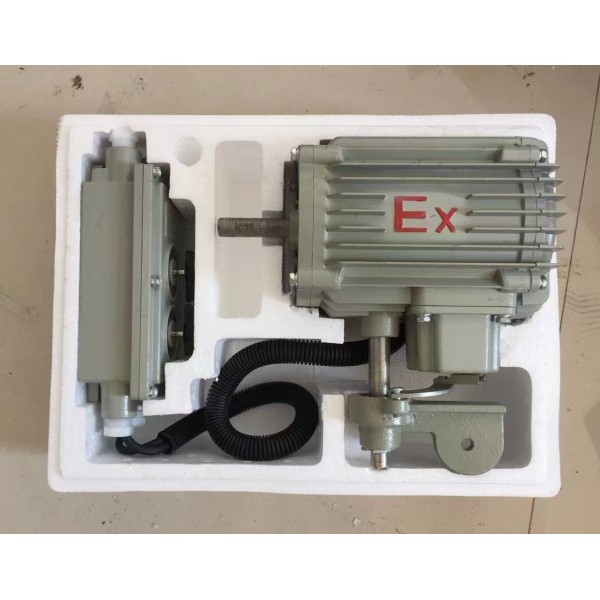

- Explosion-proof fan consists of Ex-motor, blades, and cylinder components
- Air duct constructed from quality steel plate welding with aluminum alloy cast blades featuring high-voltage static plastic-sprayed surface
- Aesthetic appearance with integrated one-body assembly frame, safety features, damping device, and low operating noise
- Conduit wiring system for secure electrical connections
Applications
- Easy installation with floor-standing and wall-mounted options
- Equipped with explosion-proof copper motor (Ex d IIC T4 Gb rating) and IP55 waterproof/dustproof protection for use in flammable, explosive, and dusty environments in Zones 1&2, 21&22
- Premium motor construction using international high-purity copper wire with die-cast aluminum fan blades and IP66 explosion-proof switch
Q1: How does an explosion-proof fan differ from a standard industrial fan?
A: Unlike standard fans, explosion-proof fans feature non-sparking fan blades (typically cast aluminum or specialized plastic), sealed anti-sparking motors, and static-conductive materials to eliminate electrostatic buildup, preventing potential ignition in hazardous environments.
Q2: Are these fans suitable for wet, outdoor, or highly corrosive environments?
A: Yes. Our fans are constructed with heavy-duty steel or stainless-steel housings, coated with epoxy powder finishing, and carry IP65/IP66 weather protection, making them ideal for high-humidity, outdoor, or highly corrosive industrial atmospheres.
Q3: Can I adjust the oscillation angle and speed of the fan?
A: Yes. Most models feature adjustable oscillation angles (typically up to 90°) to cover wide airflow areas. Variable speed control or multi-speed settings are also available depending on the explosion-proof motor model selected.
Q4: What mounting options are available for industrial oscillating fans?
A: We offer flexible mounting configurations, including wall-mounted, pedestal/floor-standing, and ceiling-suspended options, allowing you to maximize floor space and tailor airflow to your facility layout.
